無塵自動循環回收噴砂機系列

◆產品特點 Product features（請往下瀏覽有大量案例照片供參考）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”車間空氣粉塵衛生標準。砂料、粉塵自動回收、分離、循環使用，工作現場干凈無粉塵污染。設備環保設計，大大改善了工人的勞動強度和作業環境配有反吹裝置，可自動清除濾芯灰塵。內置分水過濾器。可對壓縮空氣進行二次油水分離。自動上料，將吸砂頭插入砂料中，啟動真空泵系統將自動上料。PLC可編程控制（選配），料位報警功能(選配)。設有調壓旋鈕、反吹按鈕。穩定的氣控裝置與磨料閥。工作半徑20-70米，表面處理等級達Sa2.5-3級。配置安全防水電源插座插頭，方便操作。配置控制電源航空插座插頭方便操作。獨特美觀的防塵控制面板與電控箱。維護與檢修特別方便。車式箱體結構，防雨防塵，移動方便。箱體門板采用快捷門瑣聯接，拆裝方便。手把開關控制（電控DC24V）。一機三用，具有開放式、工業吸砂器、環保型三種設備的功能。噴砂主機采用特殊控制回路，工作壓力在0.2Kpa-0.8Kpa范圍內任意調節，可滿足不同工件的噴砂工藝要求。使用范圍：除銹、除油漆、焊縫處理（包括不銹鋼焊縫及其周邊的去黑、去焊渣處理）去毛刺、飛邊、氧化皮、不銹鋼，鋁材表面的典雅型亞光處理（耐污性較好、可遮蓋劃傷）、去混凝土、石雕表面污圬等處理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要技術參數 Main technical parameters

機器型號 Model	STR-B型無塵自動循環回收式噴砂機
工作電源 Work power	380V 50HZ
空氣壓力 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
電機功率 Motor power	4kw
工作效率 Work efficiency	6-10m2
工作半徑 Work radius	10m 可根據需求加長，具體咨詢客服
工作形式 Work form	自動循環回收Automatic cycle recovery
清理等級 Clean level	Sa2-3
粗糙度 Roughness	60μm左右
重量 Weight	260kg
外形尺寸 Shape dimension	1380×830×1700mm
砂料規格 Sand material specifications	20-100#以上（1.0mm-0.04mm）

◆適用范圍 Applicable scope

1.環保要求高且無任何除塵設備的場合；

2.處理等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

使用范圍：除銹、除油漆焊縫處理去毛刺、飛邊、氧化皮不銹鋼、鋁材表面的典雅型亞光處理（耐污性較好、可遮蓋劃傷）去混凝土、石雕表面污圬等處理。

（具體資料可參考A型或致電我公司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 產品特點 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已壓縮，目的就是方便戶外施工移動方便，大大的降低了勞動強度，并且處理效率在國內同類型產品快捷；得到廣大客戶的一致認可，并已經得到了廣泛的推廣和使用?。ň唧w資料可參考A型或致電我公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

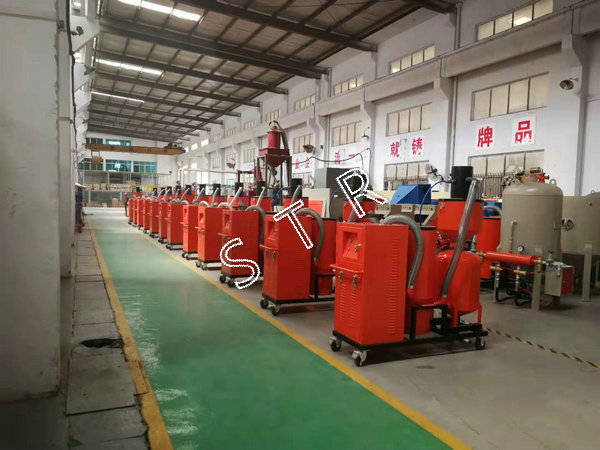

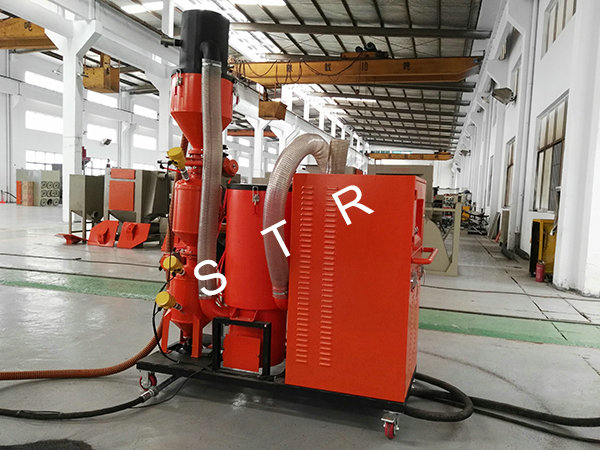

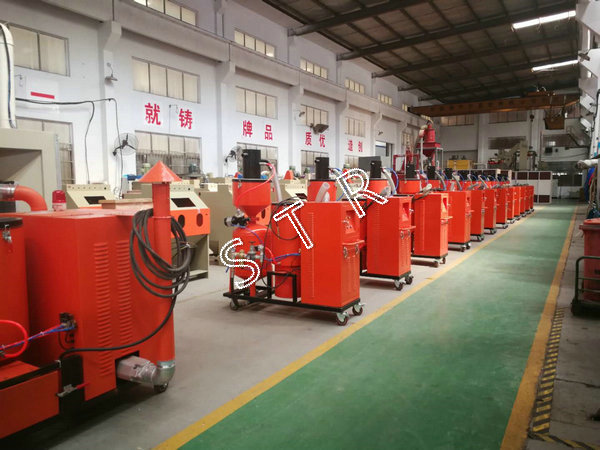

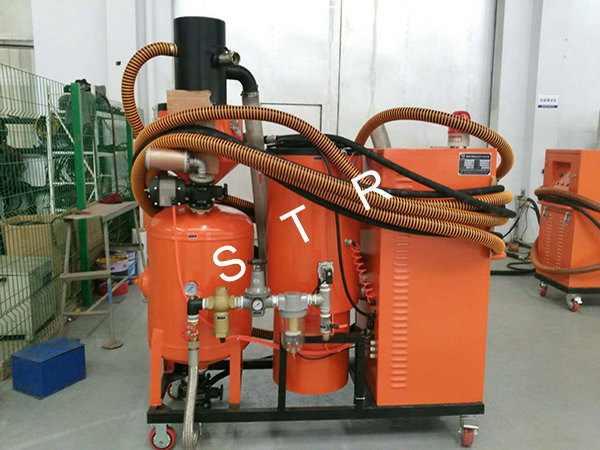

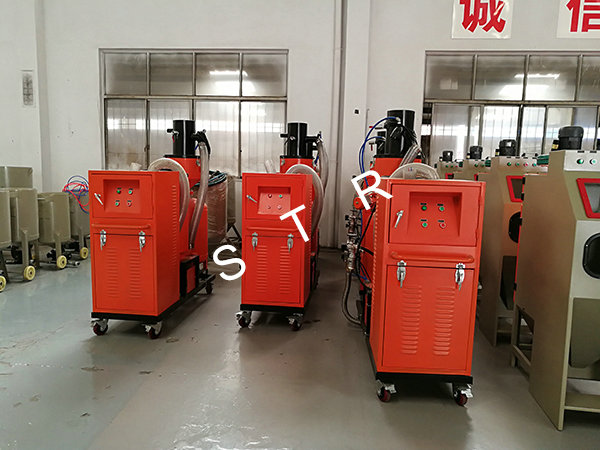

部份無塵自動循環環保型噴砂機案例:
